About JL Audio CLS110RG-W7AE ProWedge™ Enclosure with One 10" W7AE Subwoofer
Product info:
- sealed enclosure with one 10" W7AE subwoofer
- 1" medium density fiberboard construction covered with black carpet
- brushed aluminum grille rods
- 3-ohm total impedance
- power handling: 300-750 watts RMS (1,500 watts peak power)
- frequency response: 20-250 Hz
- sensitivity: 84 dB
- 17-5/8"W x 14-5/8"H x 16-3/4"D1 x 11-1/2"D2
- warranty: 1 years
- 30-day returns
- MFR # 010-03238-00
- Item # 136S110R7A
Specs
| General
|
|
| Woofer Size (inches)
|
10
|
| Speakers Per Box
|
--
|
| Woofer Material
|
Polypropylene
|
| Enclosure Type
|
Sealed
|
| Color
|
Black
|
| Pieces in System
|
1
|
| Width (inches)
|
17-5/8
|
| Height (inches)
|
14-5/8
|
| Depth (inches)
|
16-3/4
|
| Connector Type
|
Binding post
|
| Frequency Response
|
20-250 Hz
|
| Power Handling (Watts RMS)
|
750
|
| Power Handling (Watts Peak)
|
1500
|
| Sensitivity
|
84 dB
|
| Impedance
|
3 ohms
|
| Parts Warranty
|
1 Years
|
| Labor Warranty
|
1 Years |
Enclosure Features

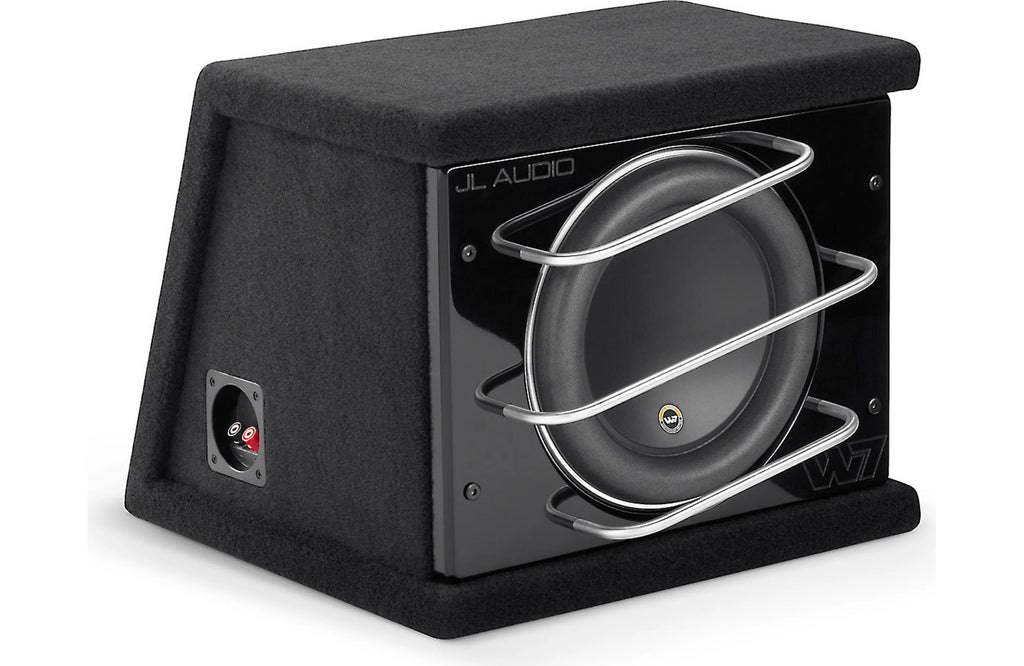

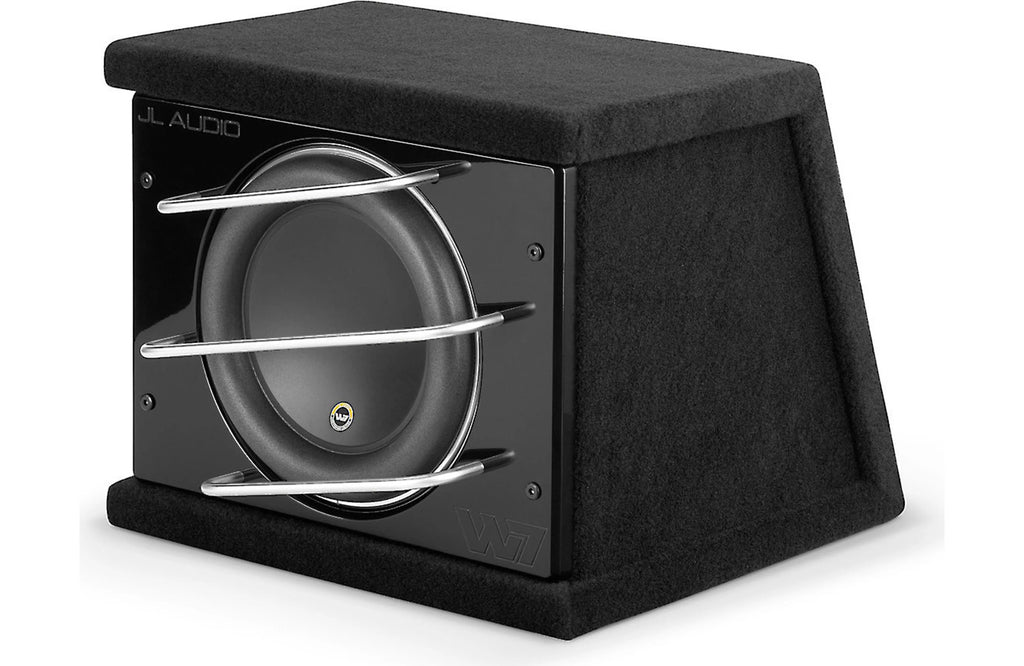

Enclosure: The ProWedge sealed enclosure is optimized for the 10" W7AE-3 subwoofer and built from 1" MDF. It's finished in high-grade black carpet with a gloss-black laminate front baffle trim featuring engraved "JL Audio" and "W7" logos. Three solid, brushed aluminum rods provide stylish woofer protection.
Terminal: The enclosure features a pair of gold plated 5-way binding posts on the left side. They will accept pin connectors, spade connectors, single banana plugs, dual banana plugs, and bare up to 10 gauge.
Enclosure Dimensions:
-
Width: 17.625"
-
Height: 14.625"
-
Depth (including grille): 18.625"
-
Depth (top of enclosure): 11.5"
-
Depth (bottom of enclosure): 16.75"
Driver Features
W-Cone: The JL Audio 10W7AE-3 subwoofer utilizes a W-Cone design, a unit-body cone assembly, that delivers astonishing cone stiffness with minimal mass. The shape also provides incredible torsional rigidity, which is critical to maintaining voice coil alignment at the suspension limits. In order to gain maximum stiffness, two lightweight mineral-filled polypropylene skins are bonded together at the perimeter and the center of the assembly. The lower skin's cross-section is shaped like a "W", and provides incredible rigidity when bonded to the dished upper skin.
OverRoll Surround: OverRoll Surround technology allows JL Audio to make full use of the entire footprint of the speaker, placing the surround further to the outside than in a conventional woofer. This means the 10W7AE-3 subwoofer can use a large roll for all its benefits without sacrificing cone area. By maximizing the effective piston/total footprint ratio, the subwoofer can deliver more output for a given excursion and outside frame diameter. This means that the prodigious excursion advantage of the 10W7AE-3 can be put to full use enhancing output, rather than making up for lost piston area. This technology also provides a geometry advantage on the outside edge of the surround roll, allowing for more linear operation. A further benefit is that the mounting holes are inherently sealed by the surround, resulting in an improved box seal.
Ultra-Long Voice Coil: The 10W7AE-3 subwoofer features an ultra-long voice coil to allow extreme linear excursion, phenomenal power handling and control. The massive surface area of these coils is excellent for heat dissipation, while the huge winding height provides the necessary motivational force to achieve the huge excursion of the design. Considering their size, the 10W7AE-3 voice coils are extremely light in weight. The voice coil uses aluminum-alloy wire (instead of conventional copper) and a specific winding method to achieve JL Audio's desired electrical properties. The light weight of the coils helps keep the overall moving mass down at manageable levels, which is extremely important for efficiency and sound quality reasons.
Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the 10W7AE-3 motor force remains linear over a very long range of excursion. It also maintains a stable fixed magnetic field in the gap over a wide power range. The result is vastly reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
Forced Air Cooled: The elevated frame design of the 10W7AE-3 delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Radial Cross-Drilled Pole Piece: This innovative venting system enhances thermal dissipation and power handling by directing air flow onto the voice coil former and works in conjunction with the Elevated Frame cooling technology to effectively remove heat from the voice coil. This improves power handling and reduces power compression effects, leading to more linear performance.
Progressive-Roll Spider: The large, progressive-roll spider provides precise control and motor/voice coil alignment without limiting excursion prematurely.
Plateau-Reinforced Spider Attachment: The lower reinforcement collar, attached to the voice coil former of the W7, incorporates a plateau design dedicated to relieving material stress and providing a solid attachment surface for the inner edge of the spider. The plateau of the reinforcement collar provides excellent contact area for adhesive therefore creating an incredibly strong bond at a critical point within the driver.
Co-Extruded Double Lead Wires: The extruded casing and carefully engineered attachments ensure controlled lead-wire behavior under the most extreme excursion demands. Two conductors are used per connection for ample current carrying capability.
